Honeywell’s projection loudspeakers are perfect for accurate and intelligible broadcast of evacuation messages. Don't be fooled by their unassuming appearance! These speakers offer reliable operations over wide temperature and humidity ranges in outdoor applications.

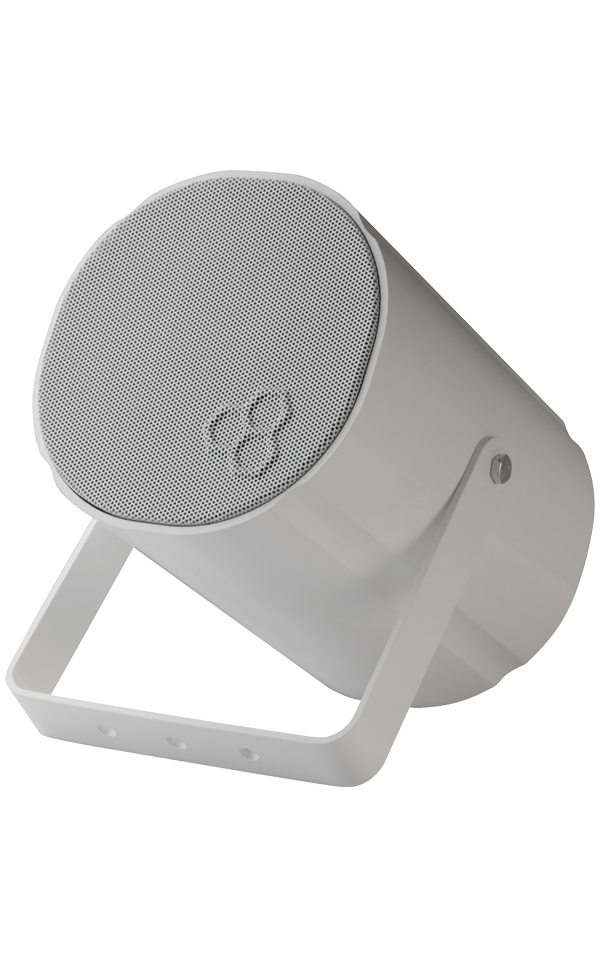

Lightweight yet stylish, unobtrusive yet powerful, the L-PJP20A is great for a number of PA & VA applications. It is easy to install, fire-proof and cost-effective.
| Model No. | L-PJP20A |
|---|---|
| Frequency response(- 10 dB) | 150 Hz - 15 kHz |
| Rated Power | 20 W |
| Max Power | 30 W |
| Rated Impedance | 500 Ω / 1 K Ω |
| Dimensions( D x L) | Φ 180mm × 230 mm |
| Color | white(RAL 9003) |
| Connector | Cable |
| Power taps @ 100V | 20 W / 10 W |
| Power taps @ 70V | 10 W / 5 W |
| Dispersion angle(1k HZ / -6db) | 120° |
| Rated input voltage | 100 V / 70 V |
| Weight | 2.1 kg |
| Material | ABS |
| SPL at 6W / 1W (200Hz-15kHz,1m) | 111 dB / 91 dB |
| Model No. | L-PJP20A |
|---|---|
| Description | Projection Loudspeaker |
| Documentation | Size | Release Date | File Type | Download |
|---|---|---|---|---|
| Datasheet | 2813.39 KB | 06.11.2020 | Download | |
